NetworkMiner: A Beginner’s Companion for Network Forensics

When it comes to investigating network activity or digging deeper into security incidents, NetworkMiner is one of the most effective tools in Kali Linux's arsenal. This tool has been trusted by cybersecurity professionals, ethical hackers, and digital forensic experts for years. Whether you're a beginner or experienced in network forensics, this guide will walk you through the features, use cases, and practical tips for getting the most out of NetworkMiner.

What is NetworkMiner?

NetworkMiner is a passive network forensic analysis tool (NFAT). Unlike tools that actively interact with networks, NetworkMiner focuses on analyzing captured network traffic data without injecting packets into the network. This makes it a stealthy and effective choice for forensic investigations.

Developed to support network traffic analysis and reconstruction, NetworkMiner is perfect for tasks such as extracting files, analyzing metadata, and identifying hosts from captured network traffic. It is compatible with Windows systems but can be run on Linux (including Kali Linux) using Mono.

How to Install NetworkMiner on Kali Linux

Although NetworkMiner is designed for Windows, it can be run on Linux systems using Mono, a free and open-source .NET Framework compatible runtime. Follow these steps to set it up on Kali Linux:

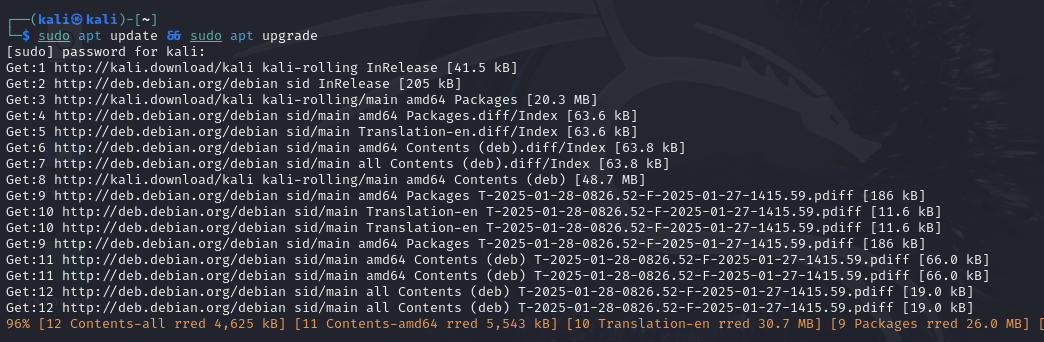

Step 1: Update Kali Linux

sudo apt update && sudo apt upgrade

Step 2: Install Mono

sudo apt install mono-runtime

Step 3: Download NetworkMiner

• Visit the official NetworkMiner website to download the latest version.

• Extract the downloaded ZIP file.

Step 4: Run NetworkMiner

mono NetworkMiner.exe

That’s it! You’re now ready to use NetworkMiner on Kali Linux.

How to Use NetworkMiner

Here’s a step-by-step walkthrough to help you get started with NetworkMiner:

Step 1: Open NetworkMiner

• Launch NetworkMiner using the mono NetworkMiner.exe command or by double-clicking on the executable file (if on Windows).

Step 2: Load a PCAP File

• NetworkMiner requires a packet capture file (PCAP) to analyze. You can capture traffic using tools like Wireshark or tcpdump, then load the PCAP file into NetworkMiner.

Step 3: Analyze Hosts

1. Navigate to the "Hosts" tab.

2. View the list of devices identified in the traffic, along with their associated details:

   • Hostname

   • IP Address

   • MAC Address

   • Operating System

   • Open Ports

Step 4: Extract Files

1. Go to the "Files" tab.

2. View all files that were transferred during the capture.

3. Select files to extract and save them for further analysis.

   • Example: Downloaded documents, transferred images, or any shared files over HTTP, FTP, or SMB.

Step 5: Analyze Images

1. Open the "Images" tab to view media files transferred over the network.

2. Inspect images for sensitive or suspicious content.

Step 6: Review Credentials

1. Check the "Credentials" tab to view usernames and passwords captured during the session.

2. Use this data to investigate unauthorized access attempts or other credential misuse.

Step 7: Session Metadata Analysis

1. Use the "Frames" and "Details" tabs to dig deeper into individual packets.

2. Analyze metadata such as user-agent strings, request headers, and response codes.

Step 8: Generate Reports

1. Export results or screenshots of findings for documentation.

2. Use extracted data as evidence or for further investigation in incident response.

Use Cases for NetworkMiner

1. Incident Response

• Quickly reconstruct an attack by analyzing malicious activities and identifying compromised hosts.

2. Data Breach Analysis

• Recover stolen files and identify the exfiltration method.

3. Malware Investigation

• Analyze network traffic to detect malware communications or payload delivery.

4. Compliance Auditing

• Review traffic for sensitive data transfers or unauthorized file access.

Tips for Beginners

1. Start with Small PCAP Files:

   • Avoid loading massive PCAP files initially. Start with smaller captures to understand how the tool works.

2. Combine with Wireshark:

   • Use Wireshark for capturing live traffic and detailed packet analysis, then switch to NetworkMiner for extracting data and metadata.

3. Update Regularly:

   • Always download the latest version of NetworkMiner to ensure compatibility with modern protocols.

4. Practice with Sample PCAPs:

   • Use publicly available PCAP files to practice forensic analysis and learn how to interpret the data.

Pros and Cons of NetworkMiner

Pros:

• Easy-to-use graphical interface.

• Rich feature set for passive forensic analysis.

• Supports a wide variety of protocols.

• Extracts files and metadata automatically.

Cons:

• Does not support real-time traffic capture.

• Limited to offline analysis of PCAP files.

• Works best when combined with other tools like Wireshark.

Conclusion

NetworkMiner is a fantastic tool for anyone venturing into network forensics. Its passive approach, combined with robust data extraction capabilities, makes it an excellent choice for investigating security incidents. By following this guide, you should have a solid understanding of how to install, configure, and use NetworkMiner effectively.

Whether you’re trying to uncover malicious activities, recover lost files, or simply learn the art of network forensics, NetworkMiner is a tool worth mastering. Download it, practice with sample PCAP files, and take your forensic skills to the next level!
